Tension Banding Tool

CH-262  English  中文

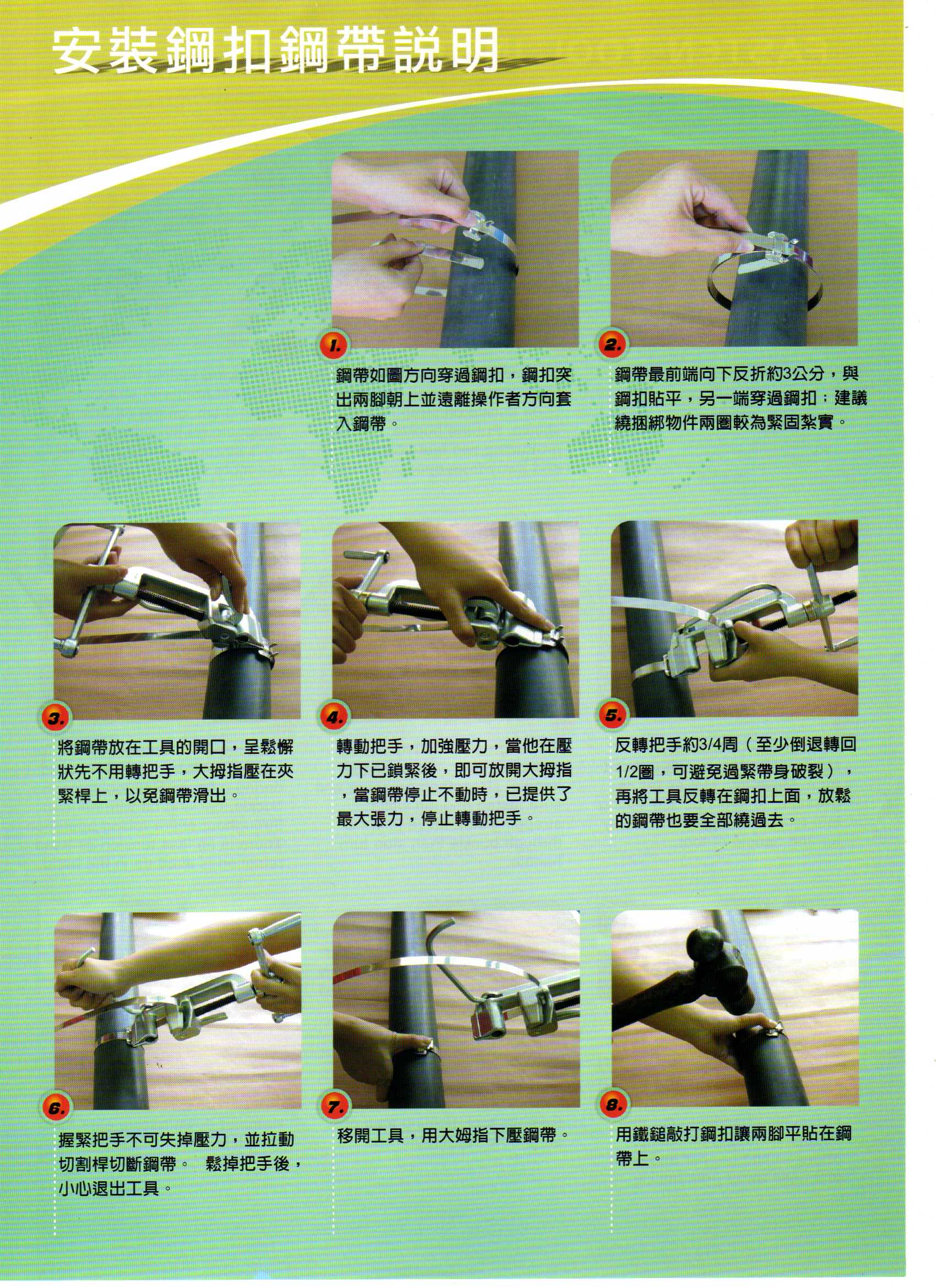

CH-260  English  中文

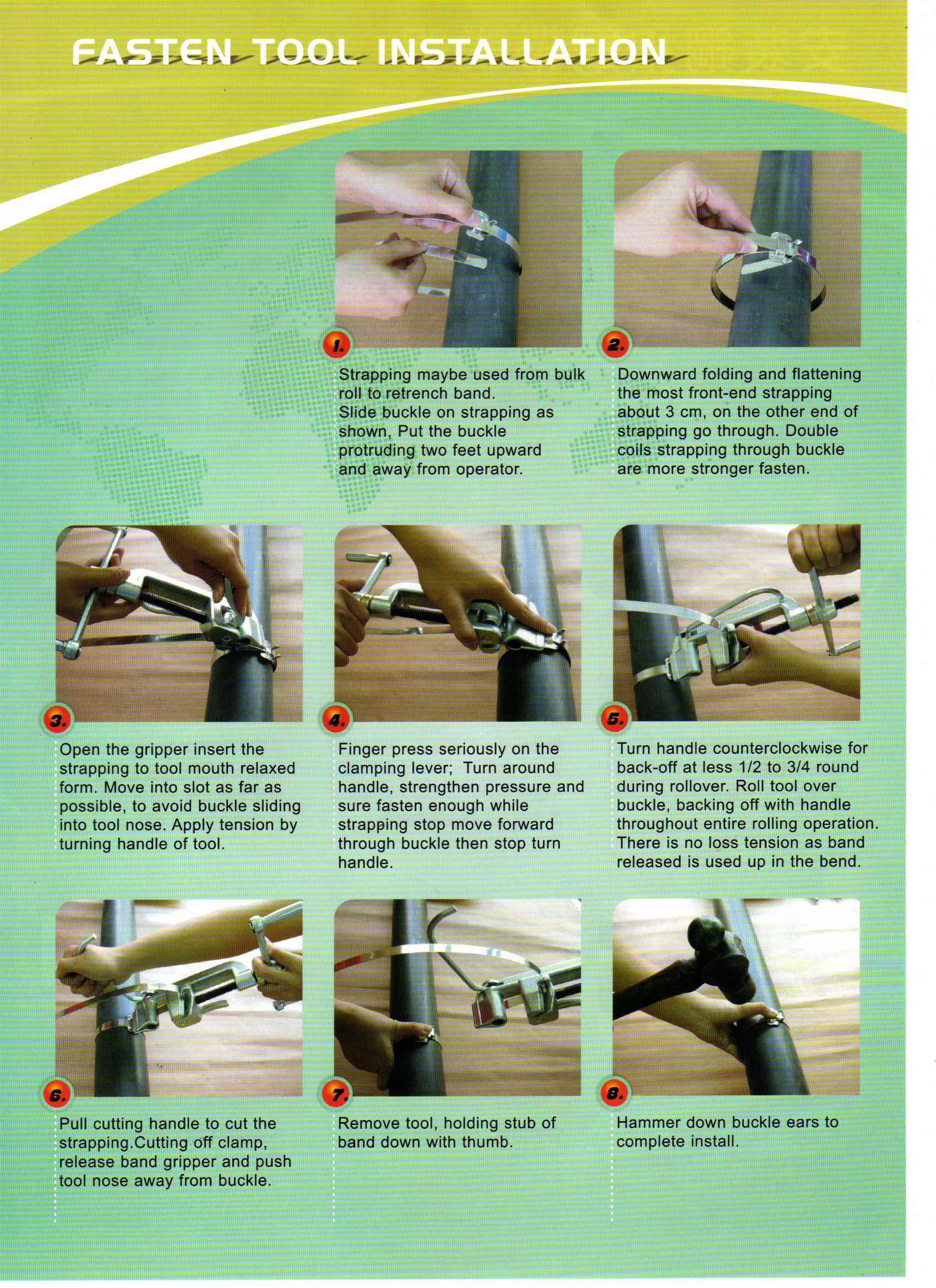

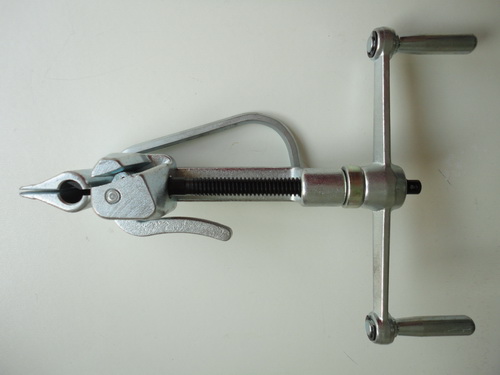

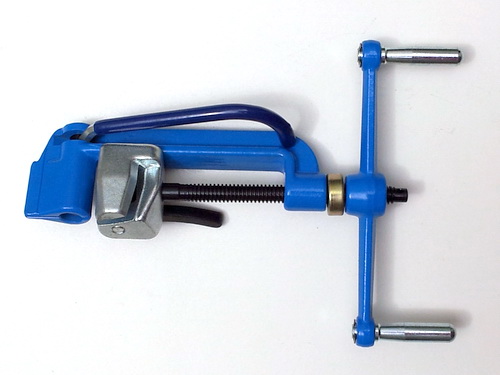

CH-260 & CH-262  high tensioning capacity worm gear installation tool with cutter. Suitable for stainless steel strapping width3/8"~3/4"* thickness 0.030" Max. with buckle bk03,bk05,bk06, FBC and WCV stainless steel cable tie.

CH-270 English  中文

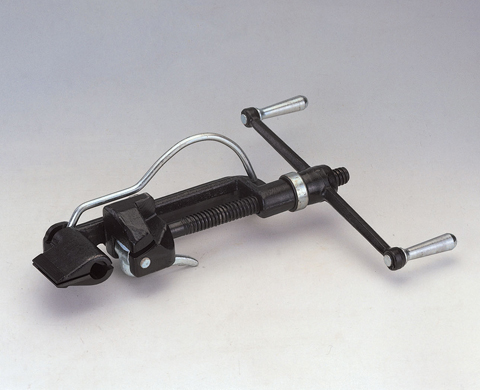

CH-270  high tensioning capacity worm gear installation tool with cutter. Suitable  for stainless steel strapping width 3/4"~1.3/4"* thickness 0.035" Max with buckle bk03,bk05,bk06, FBC and WCV stainless steel cable tie.

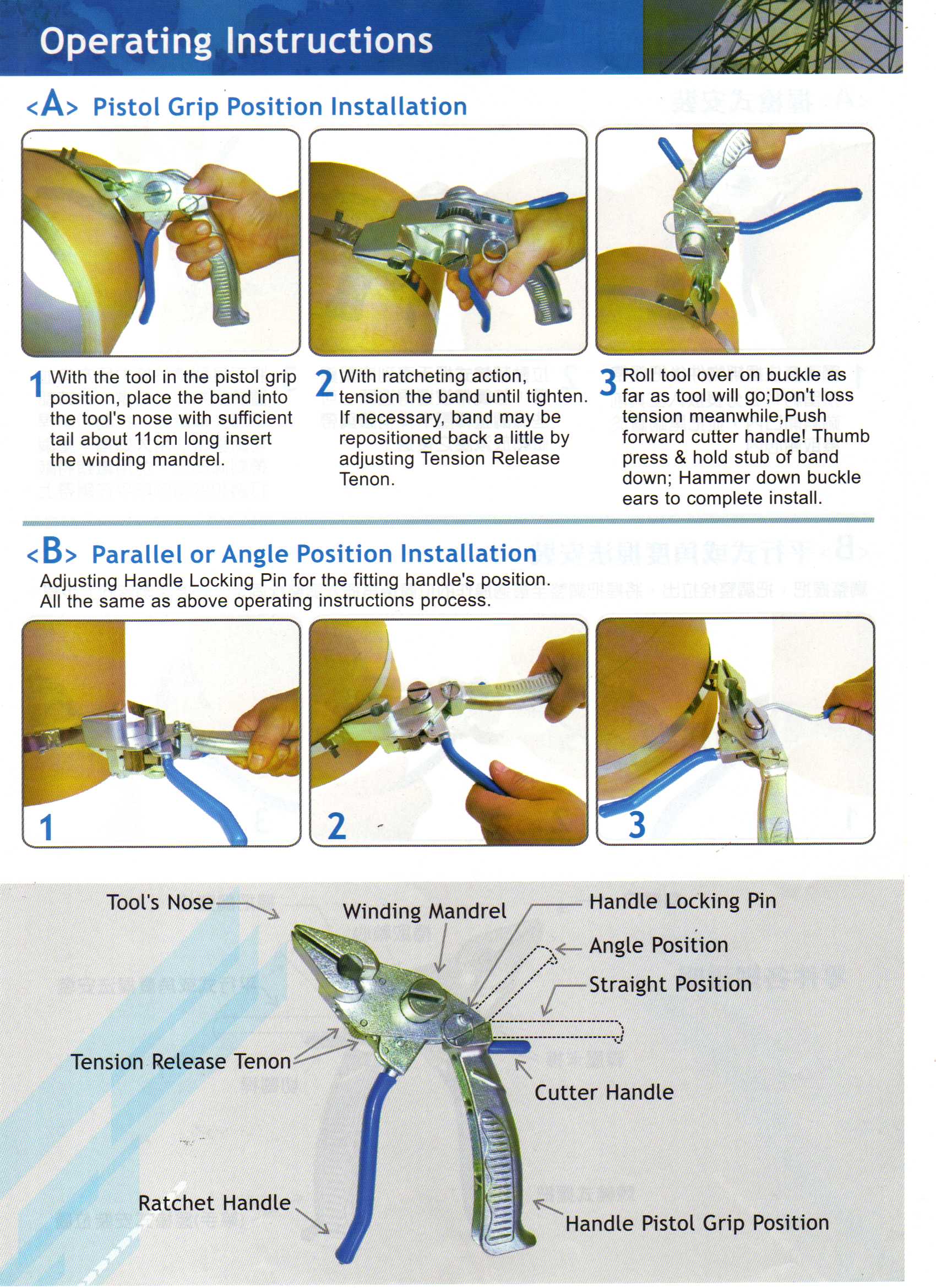

CH-075 English  中文

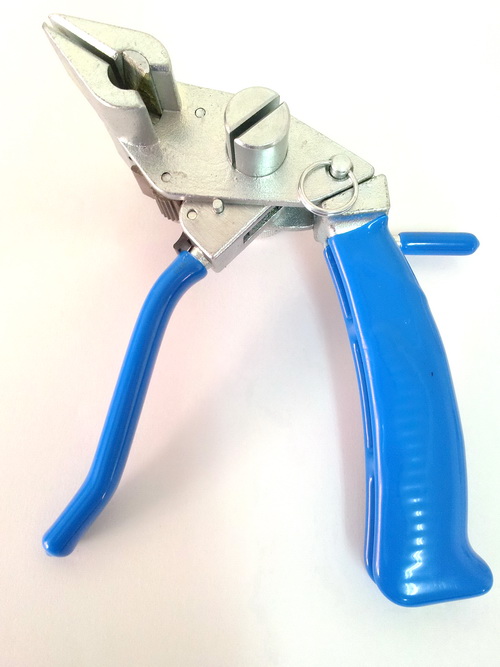

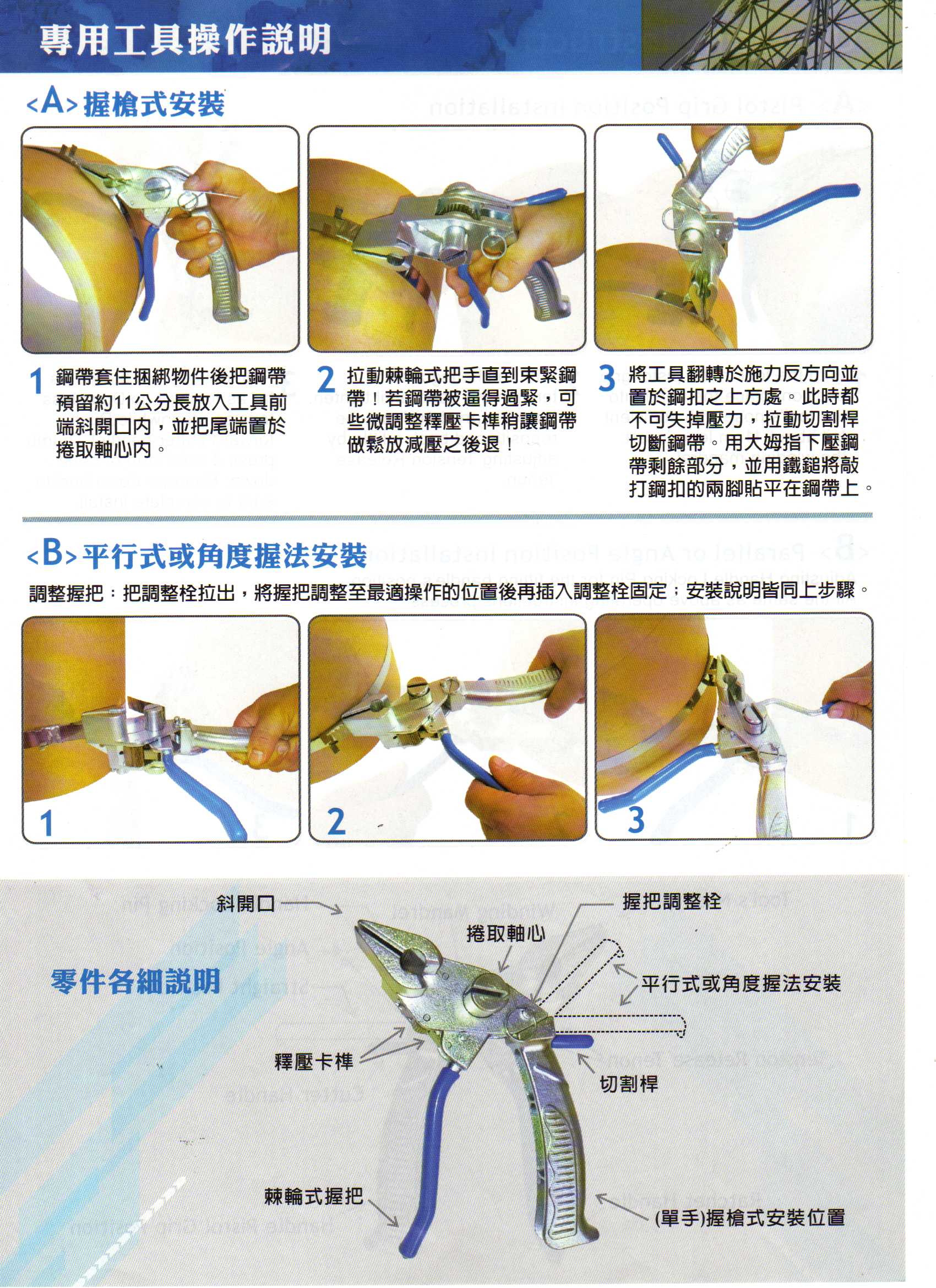

CH-075 Ratchet type tightening andcutting a band clamp is provided with a separable body and handle,  2 way handle adjusts for one or two-handed tensioning. Also allow band to be repositioned Suitable for stainless steel strapping width 3/8"~3/4"* thickness 0.030" Max. with buckle bk03,bk05,bk06, FBC and WCV stainless steel cable tie.

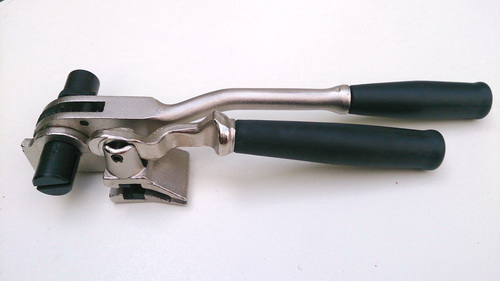

CH-240 Windlass type Tensioner with cutter with hammer knob for binding irregular & non-compressible banding. Portable, fast, reliable ratchet type tool. Suitable for stainless steel strapping width 1/4"~3/4"* thickness 0.034" Max. with buckle bk03,bk05,bk06, FBC and WCV stainless steel cable tie.

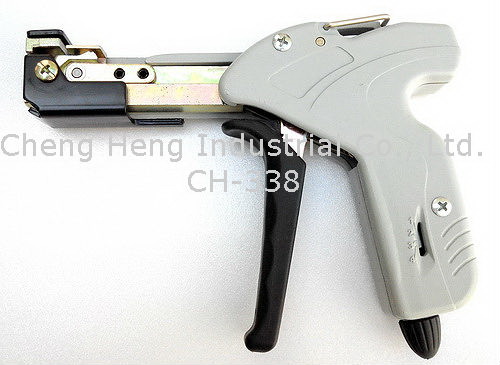

CH-338

• For BCT & CBCT stainless steel cable tie up to 0.3mm, width from 4.6mm to 7.9mm.
• Adjustable tension dial for 4 levels bunding pressure.
• Automatic cut-off one required tension is achieved.
• Replacement parts are available.

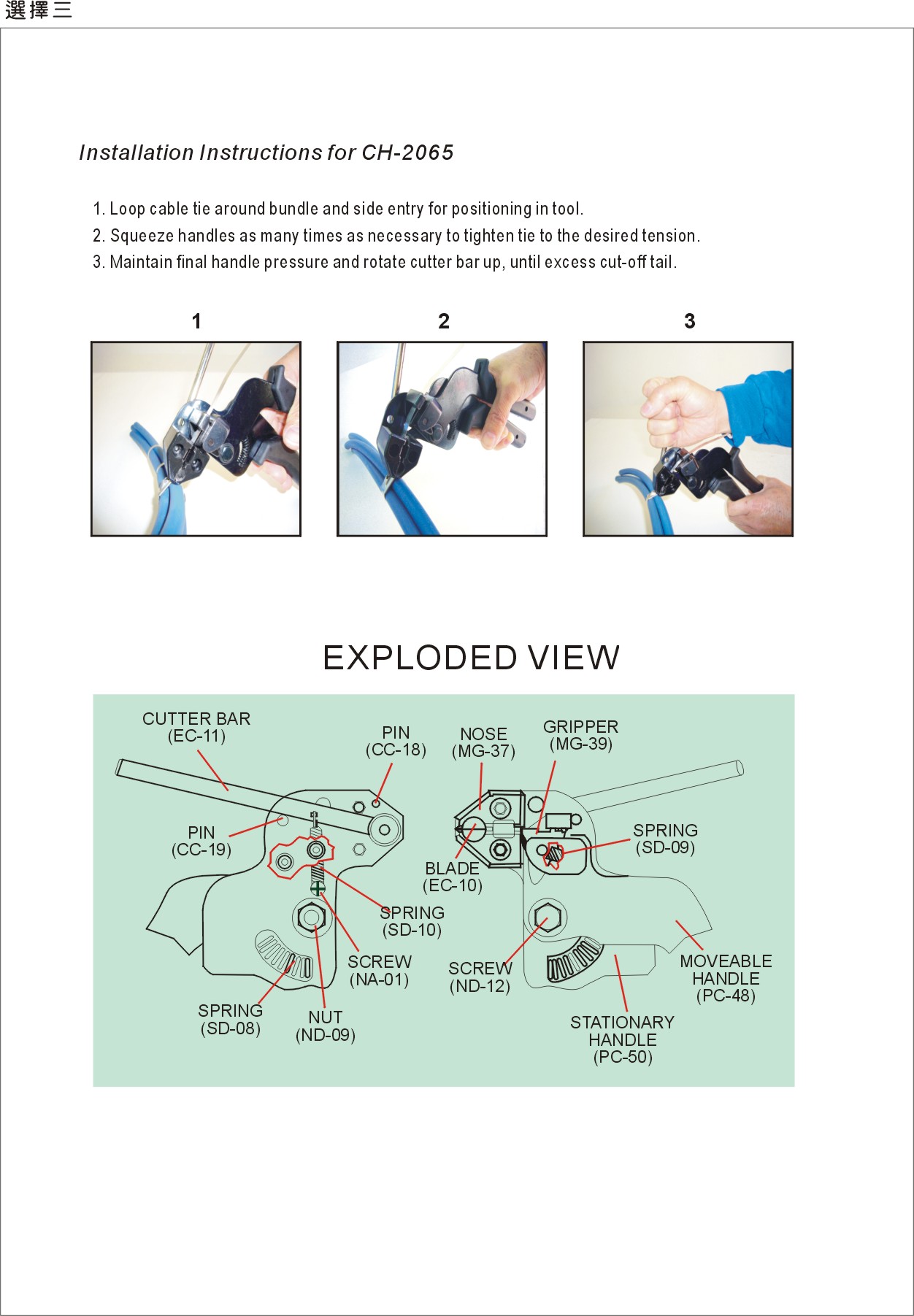

CH-2065

TENSION BANDING TOOL WITH CUTTER
Semi-auto module enable to the function of tighten and cut off the stainless steel lines.
Application: stainless steel tie has been tightened push down the roundsteel bar at side can easily cut off rest of tie.

Suitable width : 4.6mm, 7.9mm, 12mm
