Ear Clamp:EHC2 applications

Manufacture Ear Clamp is 360o stepless design-no gaps on inner circumference to concentrated seal compression. Special smooth edge band for less damage to hose. Ear Clamps are intended for one-time use only. Ear clamp is more secure fit since there are no gaps in the seal and will not loosen up over time like traditional worm drive clamps.

EHC2 Stainless steel Ear clamps are especially well used to aplications involving both flexible and inflexible thin-walled hoses with hight "Shore" hardness, are also often used in automotive industry & lower pressure have been used on irrigation systems with black polyethylene pipe. PEX tube.

Material:

*AISI 304(DIN 1.4301)
**AISI 316 Stainless Steel Ear Stepless clamps are available on special order. Use for Marine, underground, and other high corrosive application.

Diameter Sizes :

We could offer the sizes to meet industries specifications requirements or industries standards, can be produced OEM / ODM clip.

Standard Series

Band width :  7mm & 9mm  x Thickness : 0.6 mm

Heavy Duty Series

W X T :  9mm X 0.8MM, 10mm x 0.8mm

  unit:mm

EHC2

Customer sizes are welcome



EHC3 multi-ladder sloted ear clamps are availabled variable sizes.
Them often used in cv boot, industry & lower pressure hose.
Material ¡G304 Stainless Steel
Band Size ¡G width 8mm   x  Thickness 0.5mm or 0.7 mm

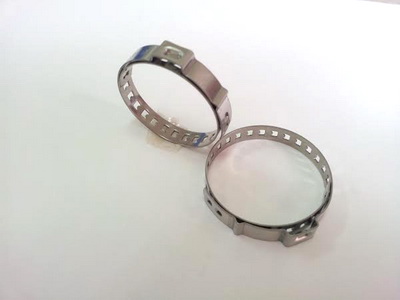

EHC5 multi-ladder sloted ear clamps are availabled variable sizes.
Them often used in cv boot, industry & lower pressure hose.
Material ¡G304 Stainless Steel
Band Size

Big Size : Diameter 122(Max.) x Width 8mm   x  Thickness 0.6mm

Small Size : Diameter 45(Max.) x Width 6.3mm   x  Thickness 0.5mm





CV-31 multi-ladder sloted ear clamps are availabled variable sizes.
Them often used in cv boot, industry & lower pressure hose.
Material ¡G430 or 304 Stainless Steel
Band Size¡G7 mm, 8mm, X Thickness ¡G0.8mm

CH W*T ID(Max.) CH W*T ID(Max.)
Part No.   mm mm Part NO.   mm mm
7032.08 7*0.8  32 8078.08 8*0.8 78
7035.08 7*0.8 35 8082.08 8*0.8 82
7038.08 7*0.8 38 8088.08 8*0.8 88
7054.08 7*0.8  54 8094.08 8*0.8 94
7060.08 7*0.8 60 8098.08 8*0.8 98
7064.08 7*0.8 64 80101.1 8*0.8 101
7070.08 7*0.8 70.5 80105.1 8*0.8 105

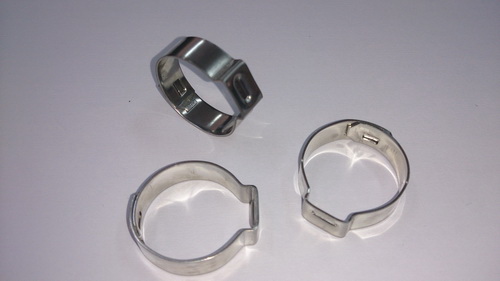

EHC1 Easy Lock Ear Clamps
They often used in light duty & lower pressure hose.
Material ¡G304 Stainless Steel
Band Size¡GWidth 7 mm x Thickness 0.6mm

Installation

Easy to installby Pneumatic Tool¡GCH-35P and Hand Installation tool¡GPINCRES CH207
These clamps are not reusable, shall be cut off to remove, slip over the hose fitting joint andrequire CH-35P pneumatic or hand tool to tighten. Strongly recommend the pneumatic tool, as it insures consistent pressure applied around the fitting and greater consistency in a production environment. Maximu suggested pressure is around 5-6 kg/cm2.

PINCERS CH-207
Pneumatic Tool:
CH-35P
