Band width : 14.2mm(9/16)

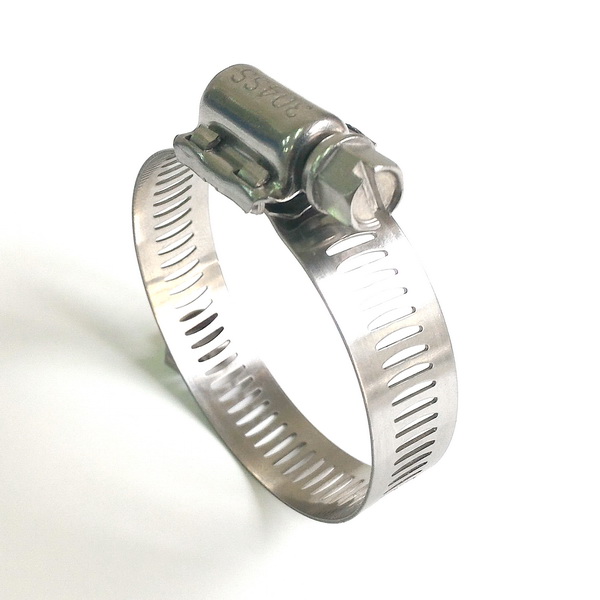

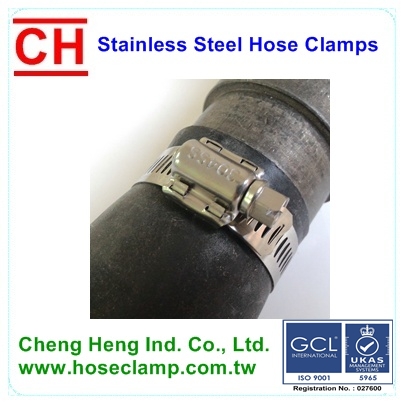

Cheng Heng's stainless steel hose clamp suitable for home, automotive,
industrial applications.
Four pieces construction: Full strength
of material to provide maximum anti-shear protection.
ALL 304 Series hose clamp : ... 304 Series Stainless Steel Band, Saddle, Housing,
Screw
|
 |
| HC4 |
| |
|
Four pieces Construction
|
|
|
|
| part
no |
CLAMPING
RANGE
|
CLAMPING
RANGE
|
|
Min-Max(inch)
|
Min-Max(mm)
|
| HC4-16 |
13/16"~1.1/2"
|
21-38
|
| HC4-20 |
1"~1.3/4"
|
25-44
|
| HC4-24 |
1"~2"
|
25-51
|
| HC4-28 |
1"~2.1/4"
|
25-57
|
| HC4-32 |
1"~2.1/2"
|
25-63
|
| HC4-36 |
1"~2.3/4"
|
25-70
|
| HC4-40 |
1"~3"
|
25-76
|
| HC4-44 |
1"~3.1/4"
|
25-82
|
| HC4-48 |
1"~3.1/2"
|
25-89
|
| HC4-52 |
1"~3.3/4"
|
25-95
|
| HC4-56 |
1"~4"
|
25-101
|
| HC4-60 |
1.1/4"-4.1/4"
|
32-108
|
| HC4-64 |
1.1/2"~4.1/2"
|
38-114
|
| HC4-72 |
2"~5"
|
51-127
|
| HC4-76 |
2.1/4"
~5.1/4"
|
57-133
|
| HC4-80 |
4.1/2"~5.1/2"
|
64-140
|
| HC4-84 |
2.3/4"~5.3/4"
|
70-146
|
| HC4-88 |
3"~6"
|
76-152
|
| HC4-92 |
3.1/4"~6.1/4"
|
83-159
|
| HC4-96 |
3.1/2"~6.1/2"
|
89-165
|
| HC4-104 |
4"~7"
|
102-178
|
| HC4-112 |
4.1/2"~7.1/2"
|
115-191
|
| HC4-116 |
4.3/4"
~7.3/4"
|
117-197
|
| HC4-120 |
5" - 8"
|
123-203
|
| HC4-124 |
5.1/4"~8.1/4"
|
130-210
|
| HC4-128 |
5.1/2"~ 8
1/2"
|
136-216
|
|
|
part
no
|
CLAMPING
RANGE
|
CLAMPING
RANGE
|
|
Min-Max(inch)
|
Min-Max(mm)
|
|
HC4-128
|
5.1/2"~ 8 1/2"
|
136-216
|
|
HC4-132
|
5.3/4"~8.3/4"
|
142-222
|
|
HC4-136
|
6"~ 9"
|
153-229
|
|
HC4-140
|
6.1/4"~ 9
1/4"
|
159-235
|
|
HC4-148
|
6.3/4"~ 9
3/4"
|
172-248
|
|
HC4-152
|
7"~10"
|
178-254
|
|
HC4-156
|
7.1/8"~10.1/8"
|
181-257
|
|
HC4-164
|
7.3/4" ~10.3/4"
|
197-273
|
|
HC4-168
|
8"~11"
|
203-279
|
|
HC4-172
|
81/4"~11.1/4"
|
210-286
|
|
HC4-180
|
8.3/4" ~11
3/4"
|
222-298
|
|
HC4-188
|
9.1/4"
~12.1/4"
|
235-311
|
|
HC4-192
|
9.1/2"~12.1/2"
|
242-318
|
|
HC4-200
|
10"~ 13"
|
254-330
|
|
HC4-204
|
10.1/4"~13.1/4"
|
261-337
|
|
HC4-208
|
10.1/2~13.1/2"
|
267-343
|
|
HC4-212
|
10.3/4"~
13.3/4"
|
273-349
|
|
HC4-228
|
11.3/4"~14.3/4"
|
299-375
|
|
HC4-232
|
12" ~ 15"
|
305-381
|
|
HC4-240
|
12.1/2"~15.1/2"
|
318-394
|
|
HC4-244
|
12.3/4"~15.3/4"
|
324-400
|
|
HC4-248
|
13" ~16"
|
330-406
|
|
HC4-264
|
14" ~ 17"
|
356-432
|
|
HC4-280
|
15"~18"
|
381-457
|
|
HC4-300
|
16.1/4"~19.1/4"
|
413-489
|
|
HC4-326
|
18.7/8"~20.7/8"
|
479-530
|
|
|
|
